Patient-centred, Planet-friendly: The propellant-free, metal-free design solution changing what’s possible in drug delivery devices

The real cost of medication nonadherence

However, medication nonadherence not only costs lives, it also places a huge burden on healthcare systems. With an estimated 50-60% nonadherence,² approximate associated annual costs range from $290 billion in the U.S, to €1.25 billion in Europe and $7 billion in Australia¹.

As well as the impact medication nonadherence has on patients and healthcare, the disposable drug delivery devices used to combat it also have a negative effect on the environment due to their high product carbon footprint (PCF).

The team at research-driven pharmaceutical company Boehringer Ingelheim wanted to change that – developing a solution that not only improves patient outcomes, but also protects the world they live in.

Solutions, limitations and issues

From the commercial availability of nebulisers in 1930s, to the introduction of hydrofluoroalkane (HFA) pressurised metered-dose inhalers (pMDIs) in 1990s, drug inhalation therapy has led to considerable improvements in the treatment of chronic respiratory conditions. However, each delivery solution comes with its own limitations and issues – from ease-of-use, to efficacy, to environmental impact.

Let’s take pMDIs, approximately 9/10 of the medication dose delivered by standard pMDIs is deposited in the oropharynx, with only 10%–15% inhaled into the lungs³. In addition, pMDIs also require slow and controlled inhalation – and adequate patient coordination – for optimal drug deposition. And although HFA-pMDIs improve lung deposition – by reducing both velocity and particle size –they still require good patient coordination and slow inhalation, and the propellant has 1,000 times the global warming potential of carbon dioxide⁴.

Dry-powder inhalers (DPIs) remove the need for such propellants, they are breath-actuated, using the process of inspiration to inhale, disperse and deposit the medication in the lungs. They result in a 95% reduction in CO2 emissions when compared to MDIs⁴. However, DPIs require a high inspiratory flow rate – which is difficult to use by certain patient groups – and are also associated with high oropharyngeal deposition and sensitivity to moisture which negatively impacts the performance of the device.

A need for change

Understanding the issues with existing delivery solutions and driven by a need for change, the team at Boehringer Ingelheim challenged themselves with three core aims. (1) avoid propellants while reducing requirements for patient coordination and inspiratory effort (2) optimise drug delivery to the lungs (3) improve the patients’ experience of taking their inhaled medication⁵.

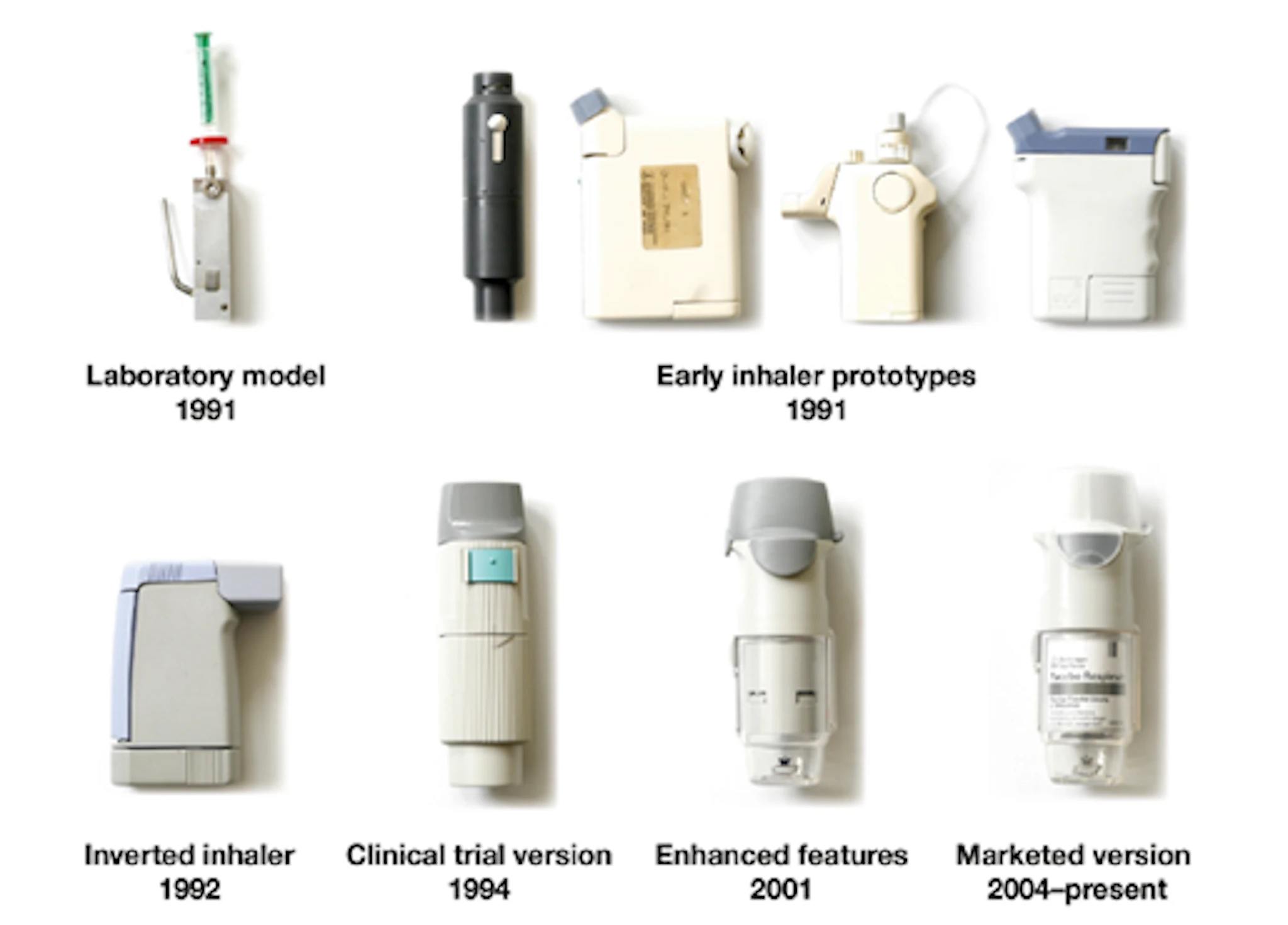

The result – the propellant-free, portable, pocket-sized Respimat® Soft Mist™ Inhaler (SMI) – a category defining inhaler that uses a mechanically powered tension spring rather than propellant to generate a slow moving, long-lasting mist that enables easy inhalation⁵.

By forcing a metered dose of drug solution through the precisely engineered innovative uniblock nozzle, the device produces two fine jets of liquid that converge at a pre-set angle. The collision of these two jets generates the unique soft mist that ensures patients receive a consistent and reliable dose every time – a true game-changer in drug delivery devices.

Change never stops

However, once the category had been defined, the team didn’t rest. Understanding that change never stops and committed to providing benefits beyond treatment, they moved to enhance the revolutionary Respimat® Soft Mist™ Inhaler – by maintaining its usability and efficiency whilst reducing its environmental impact by making it re-usable.

To achieve this new goal, it became clear they needed to overhaul the materials used within the device.

A partner for change

Searching for a metal-free alternative to reduce manufacturing inefficiencies, the team approached Victrex. The challenge – to provide a solution that enabled more design freedom and easier processing through moulding for mass production for very small parts to reduce the manufacturing costs per unit from machining.

Finding ways to improve a device or to develop new solutions is challenging – but with the right high performing materials, that journey can be easier. Victrex helped the team discover what is possible, and how far they could push the boundaries when inventing with PEEK.

Material Solution

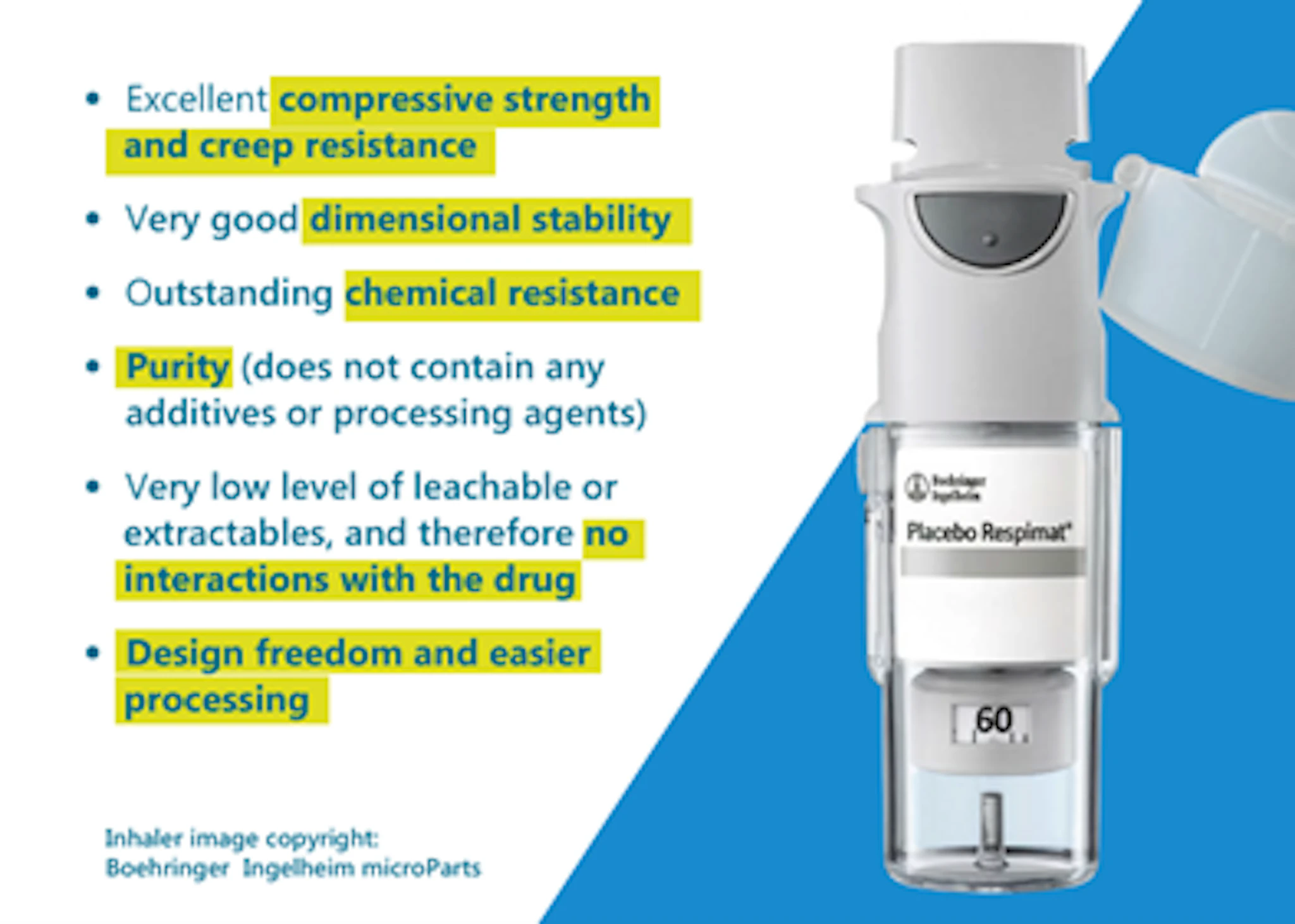

A major consideration in material selection was ease of processing to enhance and streamline the production process – reducing time and costs while increasing output. The economies of scale gained by PEEK’s ability to be mass produced via injection moulding (vs. machining of metal parts) helps allow the production of sufficient device units to meet the wider demographic and volume of patient capable of being served by SMIs.

To further enhance the performance of the material for this unique set of requirements, Victrex worked with the Boehringer Ingelheim team to develop a customer specific polymer grade, to align with the narrowed tolerances within specifications.

A game-changing solution

All of this culminated in Respimat® re-usable, an enhanced SMI significantly reducing waste and PCF. In contrast to most disposable plastic inhaler devices needing to be replaced after initial medication runs out, Respimat® re-usable can use up to six medication refill cartridges – a feature that is estimated could lead to 1.2 million fewer inhalers being sent to landfill each year in the UK alone⁶ – making Respimat® re-usable 71% better for the environment than the previous disposable version⁶.

And the innovation continues, with the 2nd generation product moving from single use inhaler to the multi-use and into the new practice area of equine veterinary care – continuously improving and evolving.

Let’s make change

Victrex has more than 40 years’ experience working with pioneering manufacturers to identify and calculate the potential benefits and value of replacing existing materials and parts with polymer alternatives – helping OEMs from various industries identify the technologies and solutions that they need to adopt in order to realise their vision.

Collaborating for over 10 years, Boehringer Ingelheim and Victrex continue to push and change what’s possible in drug delivery devices – refining materials to ensure minimised waste, improved melt filtration and purity. Working together, we have the vision, the tools and the products to support moves away from inefficient dated solutions and towards more effective sustainable alternatives, helping to improve patient outcomes and protect the environment. Let’s make change.
