Innovation in composites: major breakthrough in time- and cost-efficient production of complex aircraft parts

herone GmbH, Dresden/Germany, has been declared a winner in the prestigious 2019 JEC Innovation Awards, in the Aerospace Application category. The winning application was the company's all-thermoplastic drive-shaft system overmoulded with an integral gear, designed for use in aerospace. It holds enormous potential and serves as further evidence that Victrex has introduced the next dimension of thermoplastic composites for use in Aerospace based on its high-performing VICTREX PAEK polymer solutions.

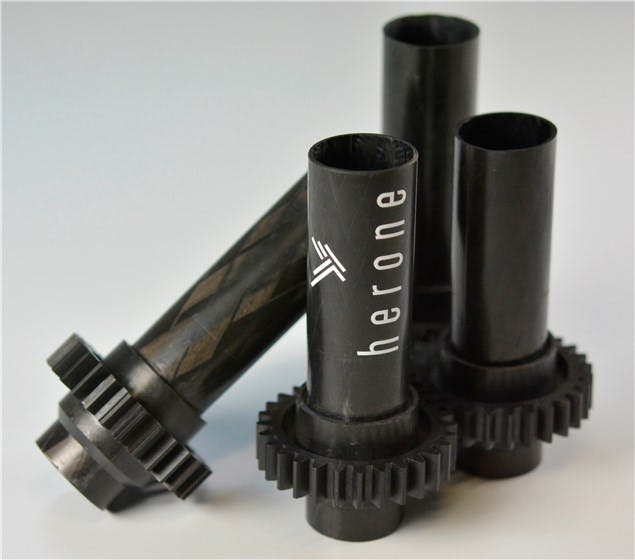

Innovation in composites:  All-thermoplastic drive-shaft system © herone
The drive shaft is formed from ‘organoTubes’, which are braided preforms made out of fully consolidated thermoplastic UD tapes, in this case, VICTREX AE™ 250 unidirectional tape (UDT), a carbon-fibre-LMPAEK composite. The process was developed by the Institute of Lightweight Engineering and Polymer Technology (ILK) (TU Dresden) and herone GmbH for use in the manufacture of high-quality continuous carbon-fibre-PAEK composite hollow profiles. The organoTubes are then overmoulded with VICTREX™ PEEK 90HMF40, a carbon-fibre-PEEK composite to incorporate the integral gear.

"We are extremely pleased to have won this JEC award, which means so much to everyone working in the exciting field of composites," said Daniel Barfuss, Managing Partner at herone GmbH. "The solution is a result of converging innovations – hollow profile technology and the hybrid overmoulding technique developed by Victrex. This is teamwork in action, together we are pushing the boundaries of composite technologies in aerospace."

Enormous potential for reduced cycle times and large-scale industrial production
By using thermoplastic tapes to form the organoTubes, the challenging and time-consuming process step of impregnating the carbon filaments with thermoplastic matrix material is already completed prior to preforming. This opens the potential for significantly reduced cycle times and increases the process efficiency for the composite profile production within the hollow-profile press process. Furthermore, braiding enables high deposition rates and makes the process suitable for large-scale industrial production.

For incorporating the gears, injection overmoulding creates cohesive molecular bond between the shaft and the gear while the drive shaft is simultaneously thermoformed to create a form-lock between the gear and the drive shaft, to further enhance the strength of the interface.

The VICTREX AE 250 LMPAEK composite has a melting temperature of around 40 °C lower than Victrex’s short carbon fibre-reinforced PEEK 90HMF40. This means that with a difference of 40 °C in the melting temperature, there is no need to pre-heat the matrix polymer of the shaft beyond its melting temperature prior to injection overmoulding. This processing approach, on the part of Victrex, is known as “hybrid overmoulding” and results in enormously improved resource efficiency, process reliability and interface strength.

herone and Victrex expect the many advantages of the new thermoplastic solution to translate into tangible key benefits, including
Enhanced part quality – In part, this is due to textile preforming of the UD Tapes
Fast cycle times – herone’s consolidation technology enables cycle times measured in minutes
Cost reduction by smart design with integrated functionality reduces the number of parts and assembly costs
Increased performance – Cohesive bonding and form locking increase strength
Final forming of the composite tubing during the injection process creates the form-locking geometry and its unique features (e.g. an internal star shape)

"In the aerospace industry, cost and manufacturing throughput are the primary drivers for innovations," noted Frank Schemm, Aerospace Sales Team Leader at Victrex. "herone and Victrex are together pioneering composite solutions for commercial aerospace that enable components to be manufactured faster, in higher part counts and with the potential for cost savings. Innovative consolidation techniques of thermoplastic materials differ considerably from metal or thermoset processing. Fully functional design features can be integrated in fewer manufacturing steps. We congratulate herone on this award for a composite solution that we are confident will see high market demand in a rapidly evolving industry. In particular, the strongly growing branch of electrical vertical take-off and landing (eVTOL) vehicles, the so called flying taxis, demand much higher production rates than classical legacy programs."

herone´s all-thermoplastic drive-shaft system overmoulded with an integral gear, will be on display at AIX, Hamburg, Germany 2-4 APRIL 2019 at the Victrex both 6A95.



About herone
herone's design, material and processing knowledge enables the company to utilize the advanced material properties of thermoplastic composites to set the new standard for your product performance. herone technology takes advantage of the thermoplastic processing properties to enable a efficient scalable serial production of thermoplastic composite profiles and enhance functionality by combining advanced post-processing solutions. Combining the thermoplastic advantage with herone expertise and the herone technology enables the company to tailor the performance of your part and manufacture it with utmost efficiency. For further information, visit
