VICTREX® PEEK Polymers

The Foundation of Victrex Innovation

About VICTREX PEEK

Shaping Future Performance

VICTREX PEEK is regarded as one of the highest performing engineering thermoplastics in the world. It has more than 35 years of proven performance in demanding environments, and Victrex customers can benefit from its high performance properties and our unmatched technical expertise.

VICTREX PEEK Properties
Hydrolysis resistance

Low moisture absorption and permeability

Resistant to steam, water, and sea water

Mechanical strength
Mechanical strength and dimensional stability

High strength and stiffness in demanding conditions

Excellent long-term creep and fatigue properties

Wear
High wear resistance

Low coefficient of friction

High abrasion and cut-through resistance

Electrical
High electrical integrity

Consistent properties across a range of frequencies and temperatures

Insulating, conducting and static dissipative materials available

Chemical resistance
Resistance to harsh chemicals

Withstands wide range of acids and bases

Excellent performance in hydrocarbons and organic solvents

Heat resistance
High temperature performance

Suitable for continuous-use temperatures up to 260°C (500°F)

Glass transition temperatures up to 170°C (338°F)

Product forms

product forms

Decades of Proven Performance

Decades of Proven Performance

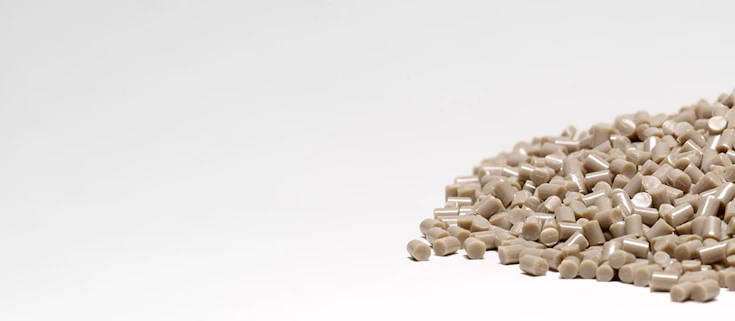

VICTREX PEEK resin

Meeting customers' high performance requirements

VICTREX PEEK polymers are at the forefront of defining future performance. These high performance thermoplastics, available in pellet and powder forms, have delivered reliability in a wide range of challenging applications. VICTREX HT™ polymer and VICTREX ST™ polymer have a proven track record of extending the performance envelope in higher temperature environments.

BENEFITS OF HIGH PERFORMANCE RESIN

  • Reduce fuel consumption and environmental impact with lighter solutions
  • Increase part lifetime through resilient performance across a broad temperature range
  • Enhance component durability with excellent wear and abrasion resistance
  • Reduce downtime and component failure with resistance to harsh chemicals and natural elements
  • Rely on long-term mechanical properties and dimensional stability
  • Meet strict safety requirements with low fire, smoke and toxicity emissions
  • Greater part integrity due to excellent barrier properties against fluids and gases

More detailed information can be found in the technical Datasheets

Literature

Click 'Add' to save a document to your own Victrex folder

Add View

VICTREX PEEK properties guide (imperial units)

Add View

VICTREX PEEK chemical resistance brochure

Combining the best of both worlds

VICTREX PEEK compound

COMBINING THE BEST OF BOTH WORLDS

Victrex offers compounded polymers that combine the innate properties of PEEK with the enhanced strength of carbon fibers, glass fibers, and proprietary blends to reach higher performance levels. VICTREX WG™ polymer, for example, provides a low, stable coefficient of friction and excellent wear resistance in high pressure, high velocity applications.

BENEFITS OF PEEK COMPOUNDS:

  • Enhance performance with a high strength-to-weight ratio
  • Increase reliability due to improved fatigue strength and creep resistance
  • Thrive in extreme wear environments with excellent abrasion resistance
  • Deliver increased electrical integrity in demanding applications
  • Improve durability with excellent resistance to a wide range of chemical species

More detailed information can be found in the technical Datasheets

Literature

Click 'Add' to save a document to your own Victrex folder

Add View

VICTREX PEEK properties guide (metric units)

Add View

VICTREX PEEK chemical resistance brochure

Processing

VICTREX PEEK Polymer processing

Processing

Process with Ease when Specifying VICTREX PEEK polymers

VICTREX PEEK polymer is capable of being processed on conventional thermoplastic equipment. Unfilled and filled grades may be supplied in the form of pellets, powder or ultra-fine powder. Pellets are generally recommended for injection molding, extrusion, monofilament and wire coating operations. Powder is used for compression molding while fine powders are generally used for coating processes, composite pre-preg manufacture and compression molding.

Most standard reciprocating screw injection molding machines are capable of molding unfilled and filled VICTREX PEEK grades. Complex and intricate high performance components can be mass-produced without annealing or conventional machining. Victrex technical experts can assist with design and process variables such as machine design, barrel capacity, screw and mold design and gating.

Literature

Click 'Add' to save a document to your own Victrex folder

Add View

VICTREX PEEK injection molding brochure

VICTREX PEEK can be used in extrusion processes and equipment including wire coating, profile extrusion, film, pipe, sheet and monofilament production. Unfilled and filled grades are readily extruded using conventional melt processing technology. Our highly-experienced technical team can help define the machine design, extruder size and control and die design.

Literature

Click 'Add' to save a document to your own Victrex folder

Add View

VICTREX PEEK extrusion brochure

Compression molded parts are generally more crystalline, have a higher modulus and tensile strength and are harder with a lower ductility. Glass and carbon fibers may be combined with VICTREX PEEK for compression molding. Our technical team recommends that our customers anneal parts with very thick sections to relieve stresses.


Literature

Click 'Add' to save a document to your own Victrex folder

Add View

VICTREX PEEK compression molding brochure
